MANGO060 USB-C PD Series

Product details

  • Safety Approvals: Medical 60601-1
  • Footprint: 4.17" x 2.24" x 1.14"
  • Construction: Class I or Class II
  • Compliance: 4th ed. EMC
  • Warranty: 3 Year


The single power delivery power supply solution for all USB-C PD enabled products. The MANGO60 USB-C PD is the choice regardless of power and voltage incompatibilities. This revolutionary product uses the latest highest-powered version of USB for medical devices. The MANGO60 USB-C PD is an IEC 60601-1 safety-approved power delivery source. It can selectively and dynamically power battery-powered medical devices. Devices include: patient monitors, portable respiratory and O2 generation equipment, imaging systems, warmers and more.

Medical USB Power Delivery Power Supply

With USB power delivery being so versatile, this adapter can power any device, regardless of voltage.

MANGO060 USB-C PDAC145/9/12/15/20V*3.0A/5.0A/5.0A/4.0A/3.2A100mV
MANGO060 USB-C PDBC85/9/12/15/20V*3.0A/5.0A/5.0A/4.0A/3.2A100mV

*Custom Voltages for Product Keying Available

This built-in versatility makes the MANGO60 USB-C PD the single power delivery power supply solution needed.  Phasiums’ 60-watt MANGO60 USB-C PD complies with USB and USB power delivery standards. System features and benefits include:
  • Reversible & robust USB-C output connector
  • USB-C + power delivery for reduced charge time of higher-power products
  • Power Negotiation – DC voltage can be requested at 5, 9, 15 and 20 volts
  • Custom Voltages
  • Authentication – lock-out unwanted USB-C power delivery enabled products
Available in Class I and Class II construction, it has a Class B FCC Part 15J emission rating. The footprint is only 4.17″ x 2.24″ x 1.14″. The MANGO60 USB-C PD has a IPX1 rated enclosure. All Phasium MANGO adapters operate from worldwide AC mains voltage input power and come with a 3-year warrantyRead the press release on Qmed.

Download Product Summary Sheet

Contact us to find out more about this revolutionary product

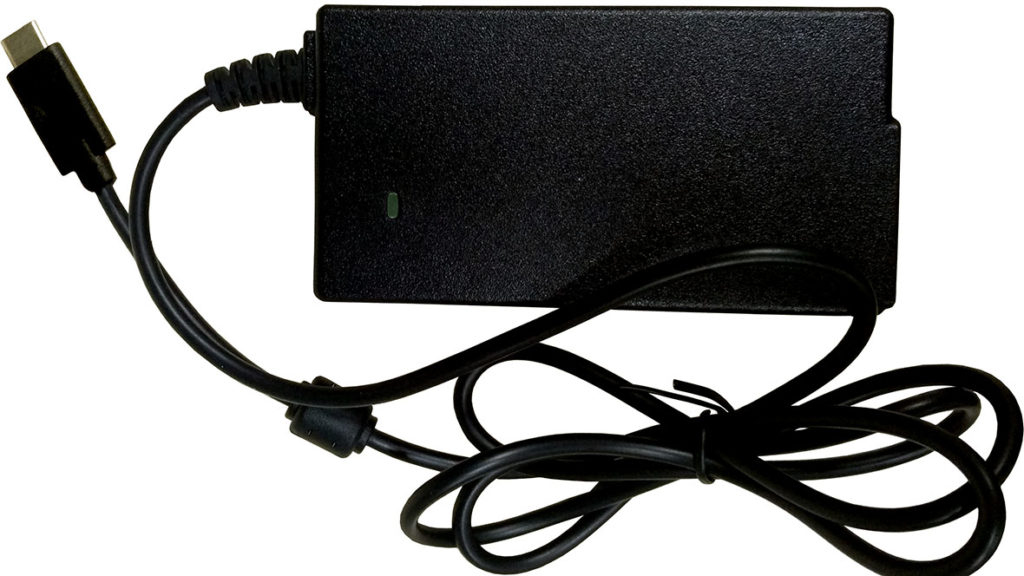

Medical USB Power Delivery MANGO 60s by Phasium
