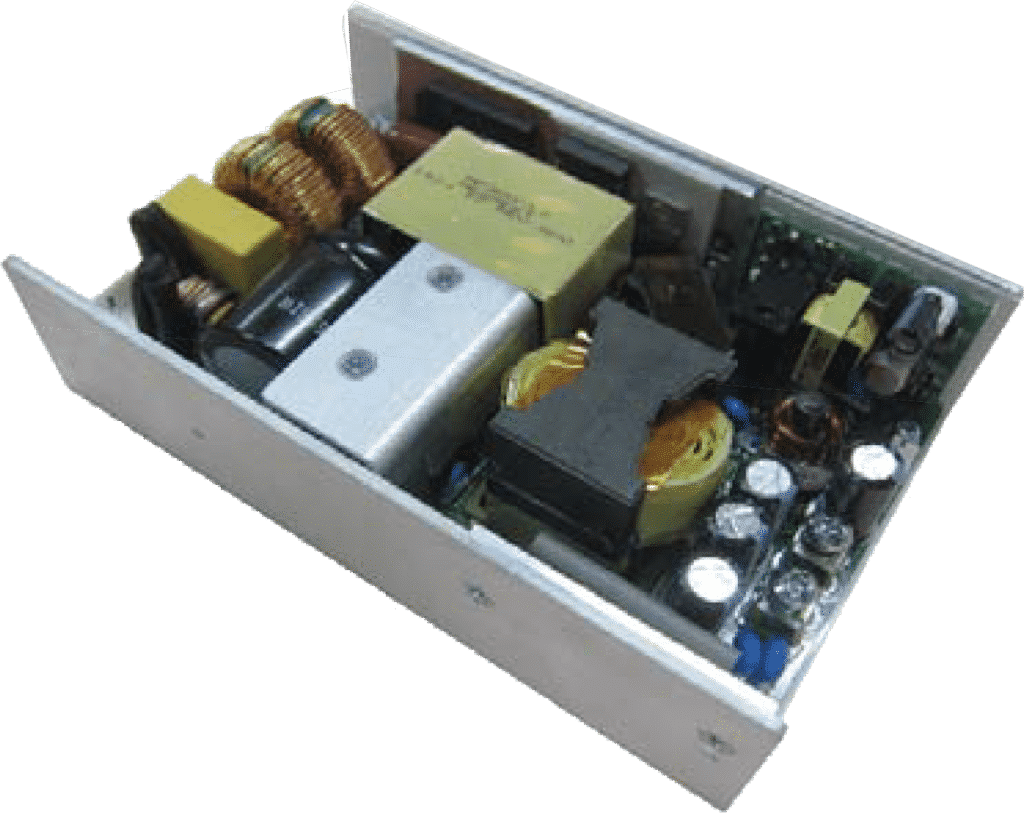

MP300 Series
Product Details
- Safety Approvals: Medical 60601-1
- Footprint: 6.0 x 3.9 x 1.5”
- Output: 5VSB @ 500mA
- High Efficiency: 93% Typical at Full Load, 230Vdc
- Emissions: EN55011 / FCC Part 15J Class B
- Warranty: 3 Year
- Input: Universal AC Input with Active PFC
- Additional Features: Remote On/Off, Power Fail
- Load Capacity: Full Load Convection Cooled Operation up to 40°C
300 Watt Medical Desktop Power Supply
The MP300 is a Rugged, High Efficiency, Convection Cooled AC/DC for MissionCritical Applications
| MODELS | MAIN OUTPUT VOLTAGE |
OUTPUT CURRENT |
PEAK CURRENT |
RIPPLE & NOISE (MAX) | STANDBY OUTPUT | MAX TOTAL REGULATION |
| MP300-12 | 12V | 25.0A | 29.0A | 120mV | 5VSB @ 500mA | ±2% |
| MP300-19 | 19V | 15.8A | 18.4A | 190mV | 5VSB @ 500mA | ±2% |
| MP300-24 | 24V | 12.5A | 14.6A | 240mV | 5VSB @ 500mA | ±2% |
| MP300-28 | 28V | 10.7A | 12.5A | 280mV | 5VSB @ 500mA | ±2% |
| MP300-36 | 36V | 8.3A | 9.7A | 360mV | 5VSB @ 500mA | ±2% |
| MP300-48 | 48V | 6.3A | 7.3A | 480mV | 5VSB @ 500mA | ±2% |
Input Voltage– 90-264 VAC (Universal)
Efficiency- 93% typical at 230 VAC, full load
Leakage Curren-t <100µA @ 264VAC
Operating Temperature- 0°C ~ +40°C
Protection- Internal T5A/ 250V Fuse (Line & Neutral)
Line Regulation- ±0.5%
Isolation- 4000 VAC Input to Output
1500 VAC Input to Ground
1500 VAC Output to Ground
Load Regulation- ±2%
MTBF– 300K Hours, Mil-217F at 25°C, full load
Download Product Summary Sheet
