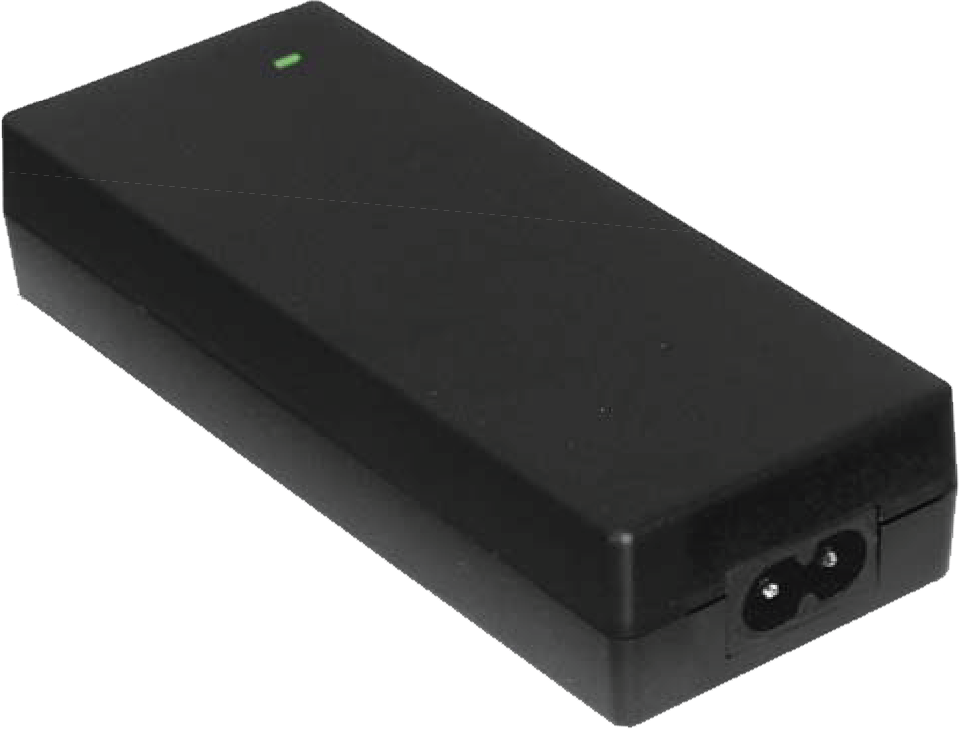

MANGO90S Series

Product details

  • Safety Approvals: Medical 60601-1
  • Footprint: 2.46 x 5.37 x 1.22”
  • Construction: Class I or Class II
  • High Efficiency: Level VI
  • Warranty: 3 Year
  • Emissions: EN55011 / FCC Part 15J Class B
  • Power Density: High -5.63W/in3
  • Enclosure Rating: IPX1

Overview:

Power Supplies for Medical Applications

The MANGO90S Series is designed to meet the most demanding medial applications. Conservatively engineered with high-quality components and assembled in an ISO 13485 manufacturing center, the MANGO90S Series boasts industry-leading size and is constructed for a long, reliable life in the field.
MODELSOUTPUT VOLTAGE OUTPUT CURRENTPEAK
CURRENT
RIPPLE &
NOISE (MAX)
MAX TOTAL REGULATION
MANGO90S-12xy 12V7.5A8.3A120mV±5%
MANGO90S-19xy 19V 5.3A 6.7A190mV±5%
MANGO90S-24xy 24V 4.2A 5.0A240mV±5%
MANGO90S-28xy28V 3.6A4.2A280mV±5%
