MANGO65S Series

Product Details

  • Safety Approvals: Medical 60601-1
  • Footprint: 4.17 x 2.24 x 1.14"
  • Construction: Class I or Class II
  • Enclosure: IPX1 Rated
  • High Efficiency: Level VI
  • Emissions: EN55011 / FCC Part 15J Class B
  • High Power Density : 5.63W/in3
  • Compliant: CEC 2008 / ErP2 / EISA 2007
  • Emissions: EN55011 / FCC Part 15J Class B
  • Warranty: 3 Year

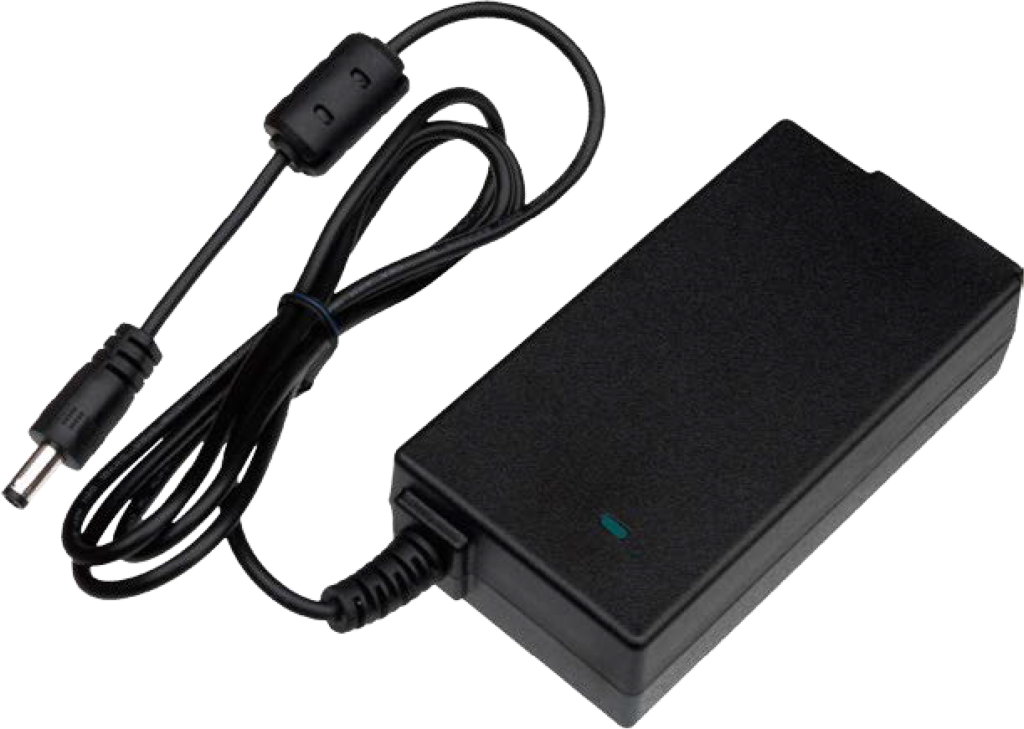

65 Watt Medical Desktop Power Supply

The supply chain solution for reliability and low cost. The MANGO65S series meets all Medical and Commercial compliance requirements including 4th Edition EMC and Level VI Efficiency. MANGO65S adapters feature user-definable IEC 320 Inlet plug styles for Class I and Class II installation options and standard DC outputs from 12V to 48V

MODELS OUTPUT
VOLTAGE
 OUTPUT
CURRENT
PEAK
CURRENT
RIPPLE &
NOISE (MAX)
LOAD
REGULATION
MANGO065S-12xy 12V 5.0A 6.0A  120mV ±5%
MANGO065S-19xy 19V 3.4A 3.8A  190mV  ±5%
MANGO065S-24xy 24V 2.7A 3.0A  240mV ±5%
MANGO065S-28xy 28V 2.3A 2.6A  280mV ±5%
MANGO065S-48xy 48V 1.4A 1.4A  480mV ±5%



Download Product Summary Sheet

Contact us to find out more about this revolutionary product
