MANGO100S Series
Product Details
- Safety Approvals: Medical 60601-1(BF)
- Footprint: 6.02 x 2.43 x 1.28”
- Input: Universal AC Input with Active PFC
- Enclosure Rating: IPX1
- Construction: Class II
- High Efficiency: Level VI
- High Power Density: 5.4W/in3
- Emissions: EN55011 / FCC Part 15J Class B
- Warranty: 3 Years

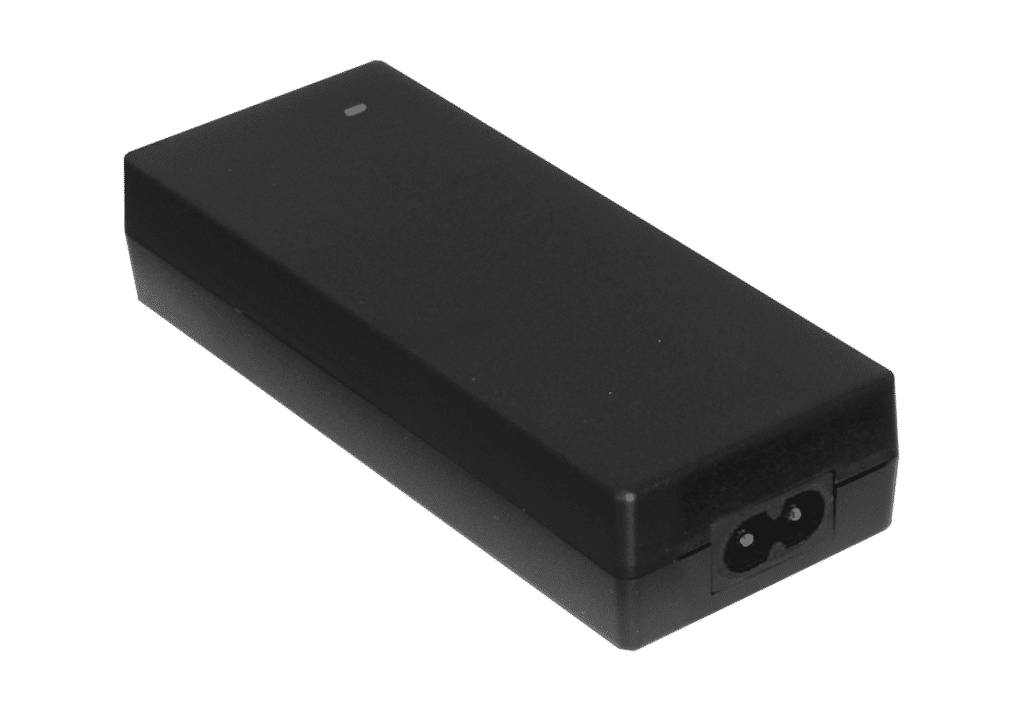

100 Watt Medical Desktop Power Supply
A two-stage PFC and LLC secondary yields over 88% average efficiency in a small lightweight package. The MANGO100S meets all medical and commercial compliance requirements and is ideal for home medical appliances.
| MODELS | OUTPUT VOLTAGE | OUTPUT CURRENT | PEAK CURRENT | RIPPLE NOISE (MAX) | MAX TOTAL REGULATION |
| MANGO100S-12y | 12V | 7.5A | 10.0A | 120mV | ±5% |
| MANGO100S-19y | 19V | 5.3A | 6.7A | 190mV | ±5% |
| MANGO100S-24y | 24V | 4.2A | 5.0A | 240mV | ±5% |
| MANGO100S-28y | 28V | 3.6A | 4.2A | 280mV | ±5% |
| MANGO100S-48y | 48V | 2.1A | 3.0A | 480mV | ±5% |
Note: Designate DC Output Connector by replacing “y” with the following: “D” for 8 Pin DIN Connector “M” for Molex 6CKT Model # 39-01-2060 or equivalent “K” for Kycon KPPX-4P Non-Locking Connector “B” for Barrel Jack Connector (5.5 x 2.5 x 11 mm).
Input Voltage- 90-264 VAC (Universal)
Leakage Current- <100µA @ 264VAC
Line Regulation- ±0.5%
Load Regulation- ±5%
Efficiency- 88% typical at 115/230 VAC, full load
Operating Temperature- 0°C ~ +40°C
Over-Voltage- 110-140% Latching
Isolation- Input to Output: 4000 VAC
MTBF- 200K Hours, Mil-217F at 25 °C, full load
